GTM 90<br>TRANSFORMER
GTM 90<br>TRANSFORMER
Цена от 8,800,000 €
27.5 m
Длина
30 узлов
Скорость
750 NM
Запас хода
4
Гостевых каюты
TRANSFORMING GTM 90. KLASSEN EDITION

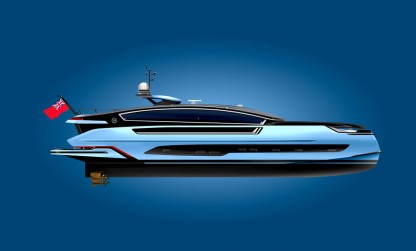

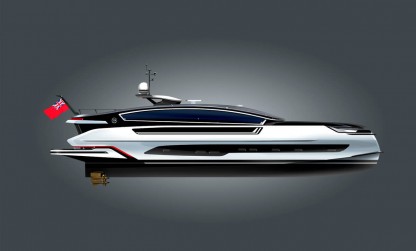

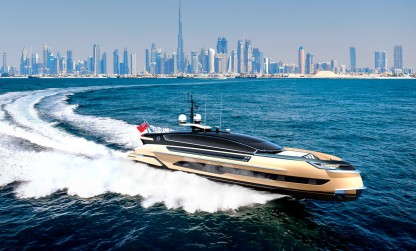

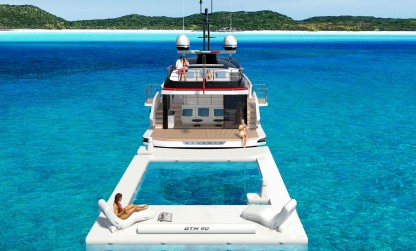

The fast & sporty yacht GTM 90 was developed not only to entertain, but to also protect guests whatever the weather. The main aft deck and sun deck provide ample space for open air lounging and the beach club, spa, dining area and open-style galley with bar can be transformed with foldable bulwarks to allow the fresh sea breeze in. The striking exterior styling recalls the lines of modern supercars and a super-efficient hard chine hull delivers a top speed of 30+ knots with a range of 750nm at 12 knots.

The first edition of the GTM 90 is being developed in collaboration with leading VIP-car tuner Klassen with interior decor that mirrors the design of exclusive Klassen vans with different leathers, rich wood paneling and elegant LED courtesy lights. Klassen will also be responsible for all the exterior detailing, including leather supply, stitching and other special automotive design features

Особенности
Performance
  • Hard chine hull shape
    Hard chine hull shape
    Devised by the famous Dutch naval architects Van Oossanen, the GTM 90 unique hull features a round-bilge shape for remarkably low resistance and low fuel consumption while still being capable of high speeds. The design decreases vertical accelerations of the hull, which translates into a far more comfortable motion when sailing. The bow shape with a vertical stem maximises the waterline length, enhancing performance even more. To keep spray levels low, an integrated spray rail deflects water hitting the bow area. Built entirely from marine grade aluminium, the GTM 90 hull guarantees unparalleled comfort and safe operation for more than 25 years

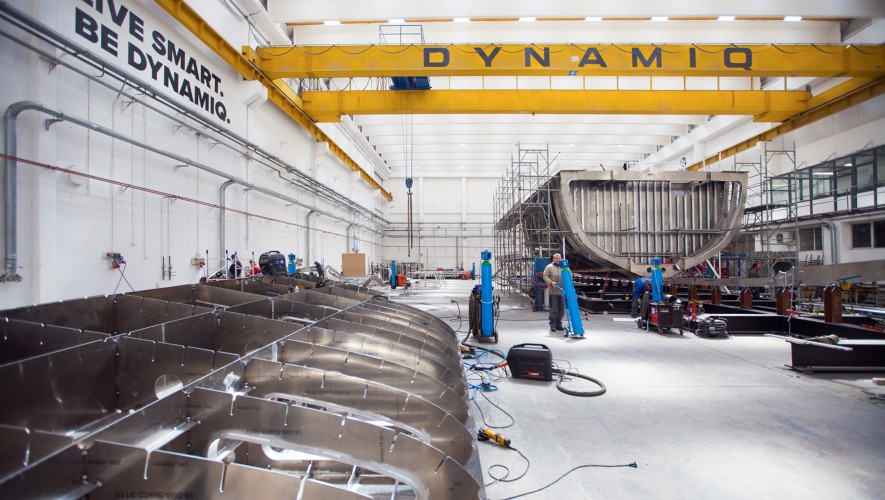

  • Robust full aluminium construction
    Robust full aluminium construction
    Certified marine-grade 5083 aluminium and stronger 5383 Sealium, a lightweight alloy that weighs three times less than steel, is used for GTM 90 hull and superstructure. A lighter hull provides better performance, shallower draft, lower fuel consumption. Another benefit is that aluminium guarantees a stiff, robust and vibration-free vessel that is very comfortable and behaves well in a heavy swell or choppy seas. The strength-to-weight ratio of aluminium is equivalent to that of steel and there is much less risk of serious damage in case of a collision than with a fibreglass hull.
  • Curved Stabilizer Fins

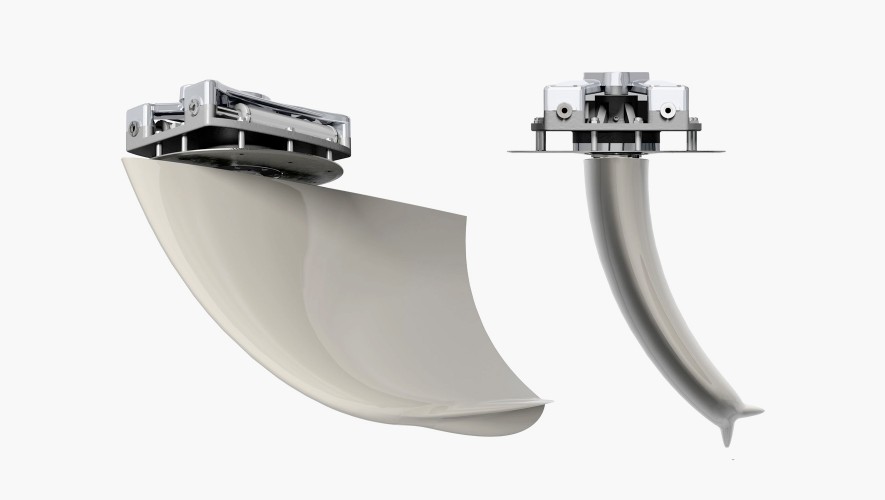

    Curved Stabilizer Fins
    Vector Fins stabilisers dramatically reduce roll as well as undesired yaw and sway motions caused by active fins. Their vertical concave shape creates a net force direction, both in cruising and at-anchor modes, so the work is more up-down instead of side-to-side. By changing the net force angle, this also increases the leverage arm around the boat’s rolling point, further increasing the physical forces that work on the boat to reduce roll. This provides more effcient stabilisation per fin size, which means that drag and power consumption are less than with other fins offering comparable roll reduction.
  • ENGINE ROOM COOLING

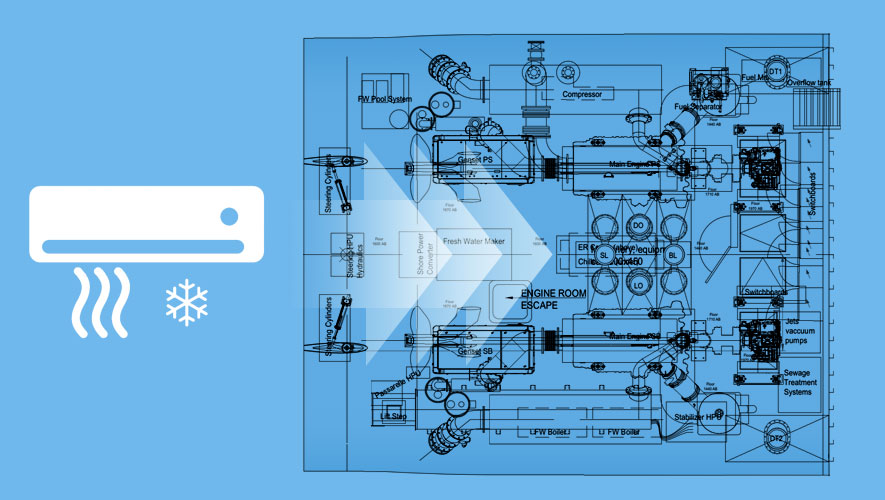

    ENGINE ROOM COOLING
    The engine room cooling offers two main benefits: on the one hand it cools down the ER quicker on arrival in port or anchorage without having the blowers running full power for an hour; and on the other hand, it keeps the ER at a comfortable and steady temperature while at anchor to preserve electrical equipment. Overall, the benefit is reduced noise as there is no need to have the blowers running when the yacht is static, and the temperature cooling in the engine room makes it a more comfortable environment to work in. A long-term benefit is that it extends the longevity of all the equipment and especially the electronic parts.
Comfort

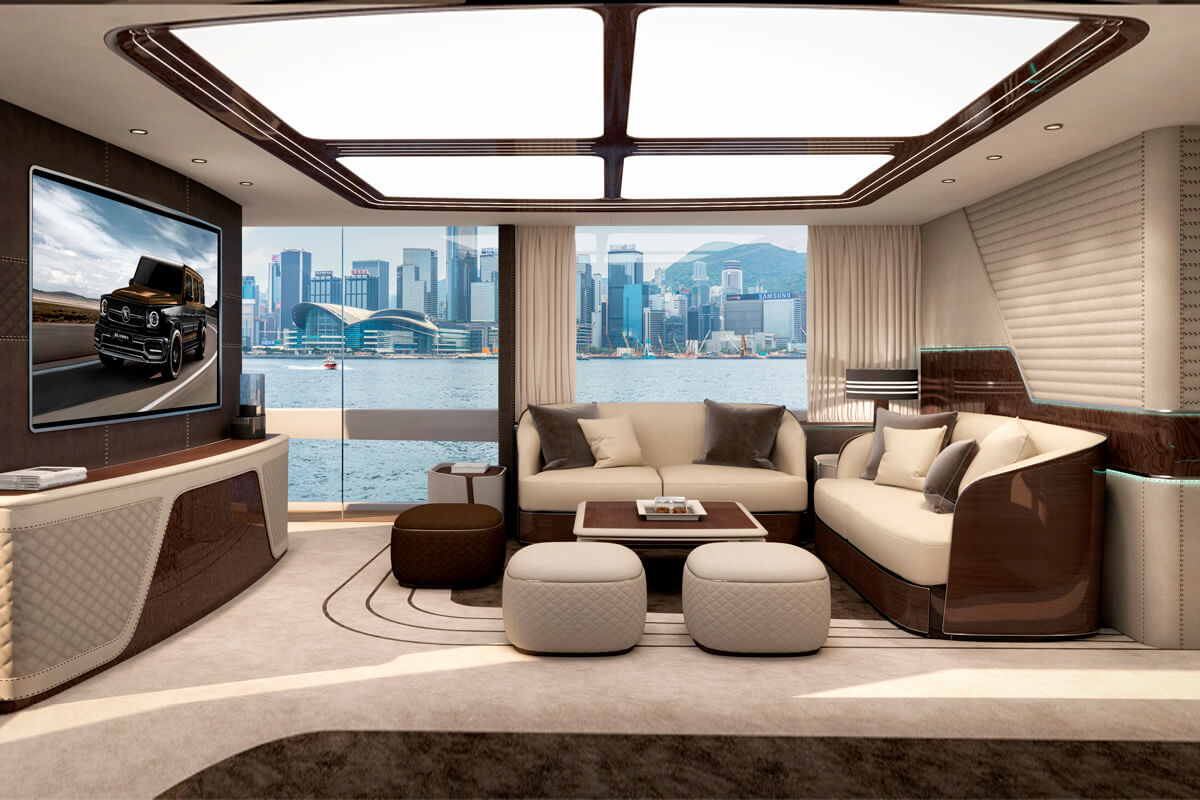

  • Bentley Home exclusive furniture collection

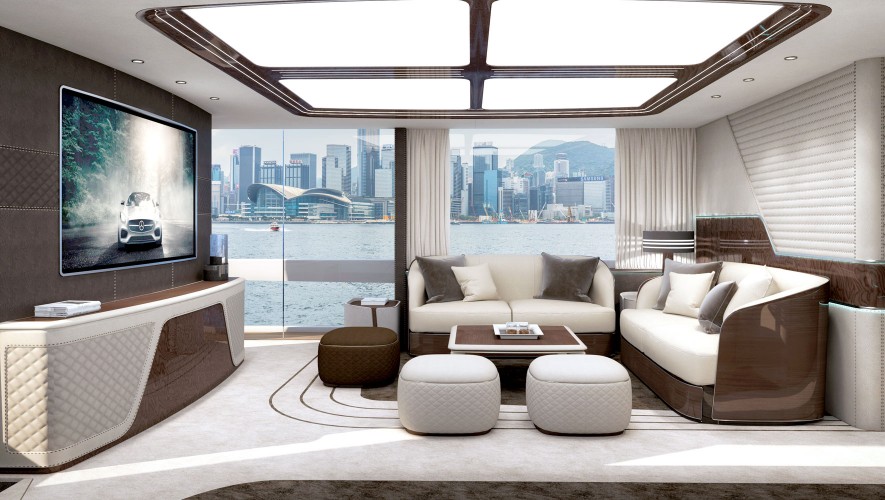

    Bentley Home exclusive furniture collection
    Feel the way you drive, with a new range of handmade furniture inspired by the techniques, materials and finishes that characterise Bentley’s renowned car interiors. Browse through a selection of loose furnishings and accessories from cult brand Bentley Home and lamps from Tom Dixon and Flos. Marbles, fabrics, leathers and accessories can be customised by the client with Bentley Home designers to ensure individual selections. Hand-tufted carpets in pure silk, bamboo and finest New Zealand virgin wool are supplied by OT (Germany), a world leader in the manufacturing and laying of exclusive hand-made carpets.

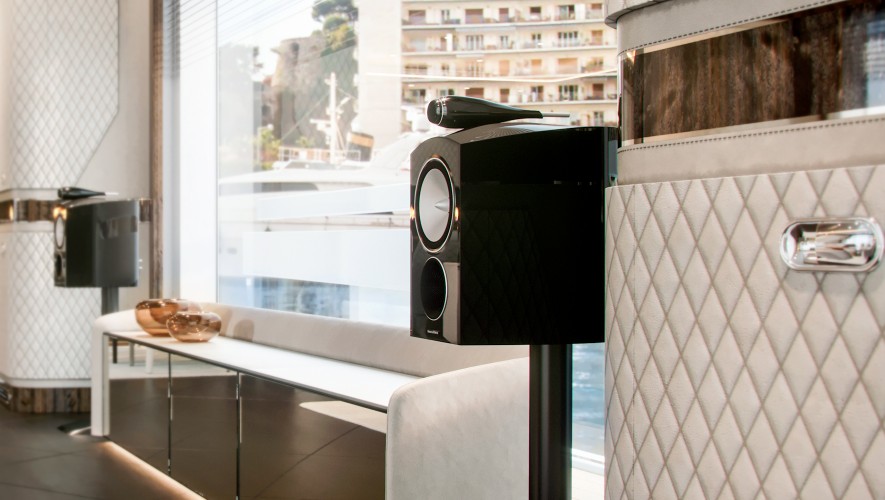

  • High-end audio by Bowers & Wilkins
    High-end audio by Bowers & Wilkins
    Dynamiq has partnered with iconic British sound maker Bowers & Wilkins to deliver pristine sound to its discerning customers. All luxury spaces and each guest cabin will be carefully analysed and studied by experts to ensure the ideal positioning of the speaker systems to have the best possible sound expertise on board.

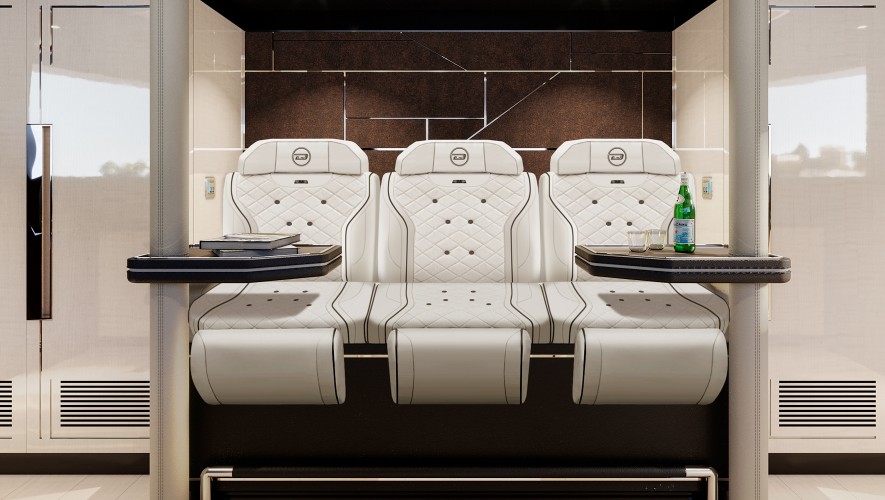

  • Wheelhouse by Klassen
    Wheelhouse by Klassen
    Dynamiq and German VIP car outfitter Klassen carefully developed the “Wheelhouse by Klassen” option. The GTM 90 wheelhouse will be designed for yacht owners and captains who appreciate the quality and style of Klassen VIP shuttles with the same sporty trim and high end finishes as you have in Klassen cars.
  • XIR glass
    XIR glass
    The GTM 90 features next-generation laminated XIR glass that allows maximum light transmission, while keeping solar heat gain at bay. Harmful UV rays are almost completely blocked, and heat transmission reduced by 60%. The result is an interior that offers the wide panoramas of large windows without the penalty of heat build-up. This means significantly reduced air-conditioning loads and therefore lower running costs. The glass manufacturer is Isoclima, an Italian high-tech company that also supplies glass for luxury automobiles such as Bentley, McLaren, Mercedes and BMW.
Paul Klassen, founder & CEO
“Dynamiq and Klassen share the same values related to high-end materials, engineering, finishing and maximum comfort on board for their demanding clientele. It's all about flawless perfection and first-class comfort on land and sea.”
Paul Klassen, founder & CEO

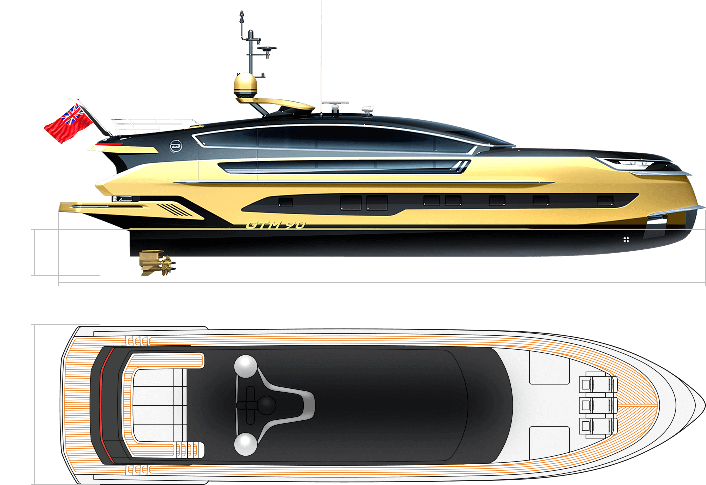

ОСНОВНЫЕ РАЗМЕРЫ

GTM 90<br>TRANSFORMER
Длина 27.5 m / 90’
Осадка 1.75 m / 5'9”
Ширина 6.7 m / 21’11”

Высота потолков во внутренних помещениях (максимальная)

Главная палуба
2.3 метра / 7’6’’
Нижняя палуба
2.07 метра / 6’9’’

ХАРАКТЕРИСТИКИ

  • Тип корпуса
    Hard chine
    Длина общая
    27.5 m / 90’
    Ширина
    6.7 m / 21’11”
    Осадка
    1.75 m / 5'9”
    Тоннаж
    160 GT
    Материал
    Full aluminium, 5083
    Основные двигатели
    3x Volvo Penta D13 IPS 1350, 735 kW
    Приводы
    3x IPS950 drives
    Генераторы
    2x 28 kW, Kohler
    Стабилизаторы
    2x Side Power curved fins
    Humphree interceptors + Seakeeper 26 (option)
  • Максимальная скорость
    30 узлов
    Круизная скорость (85% об-мин)
    17 узлов
    Запас хода
    750 миль на 12 узлах
    450 миль на 20 узлах
    Запас топлива
    9,400 l / 2,480 галлонов
    Запас воды
    2,050 l / 541 галлонов
    Grey & black water
    1,250 l / 330 галлонов
    Гости
    8 (+1) в 4 каютах
    Экипаж
    4 в 2 каютах
  • Тендер
    Williams 505 / Castoldi 16 (5,08 m / 16’ 8’’)
    Классификация
    ISO Class A, MCA MGN 280
    Морская архитектура
    Van Oossanen NA
    Дизайн экстерьера
    Dobroserdov Design
    Дизайн интерьера
    Giuseppina Arena / Dynamiq
    Срок строительства
    18 месяцев
Цена от 8,800,000 €
Цена указана без опций, налогов и сборов

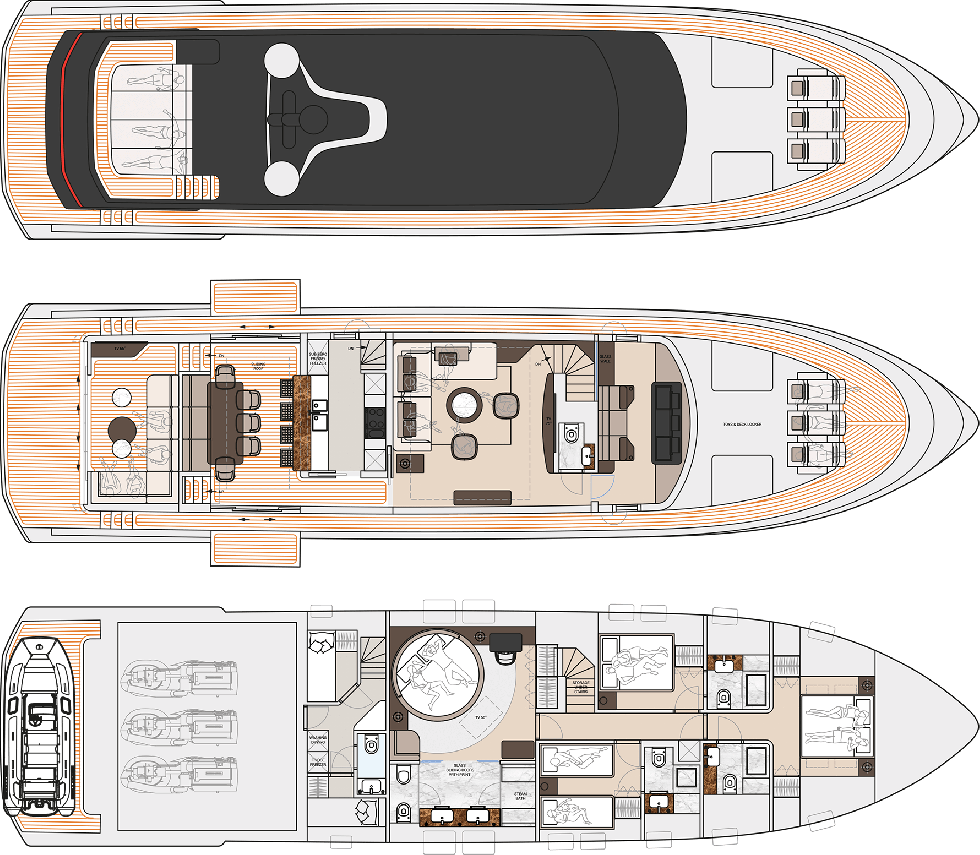

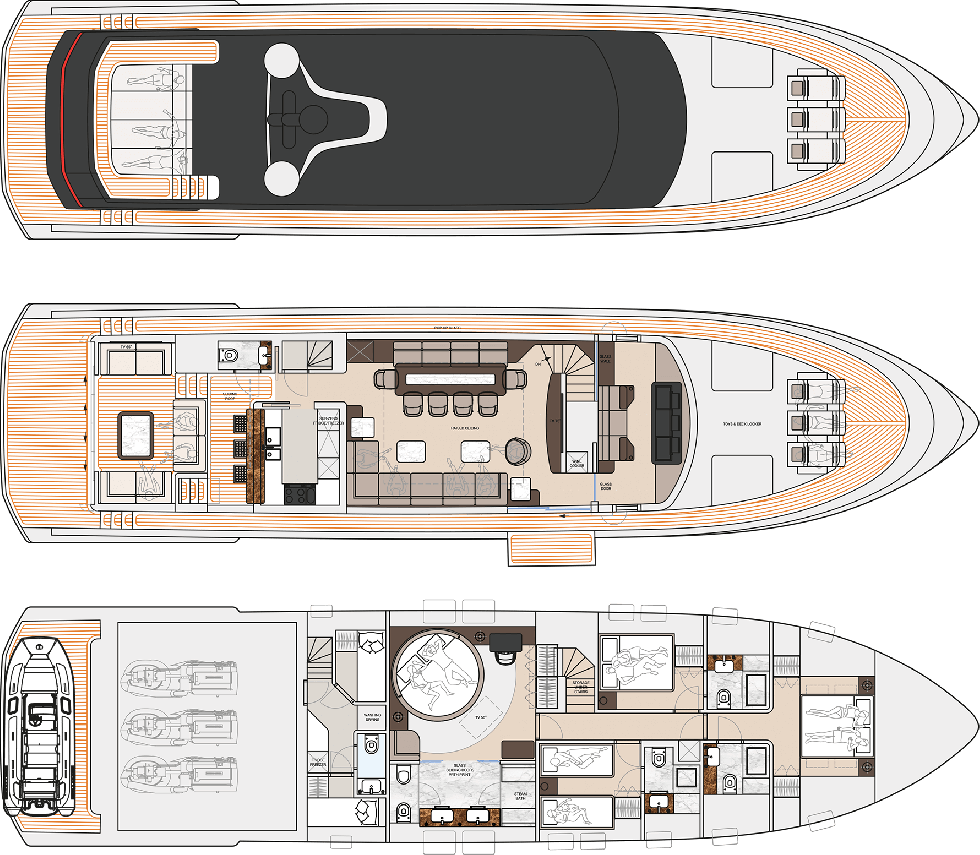

Планировка
