GTM 90
27.5 m
Length
31 kn
Speed
900 NM
Range
4
Guest cabins

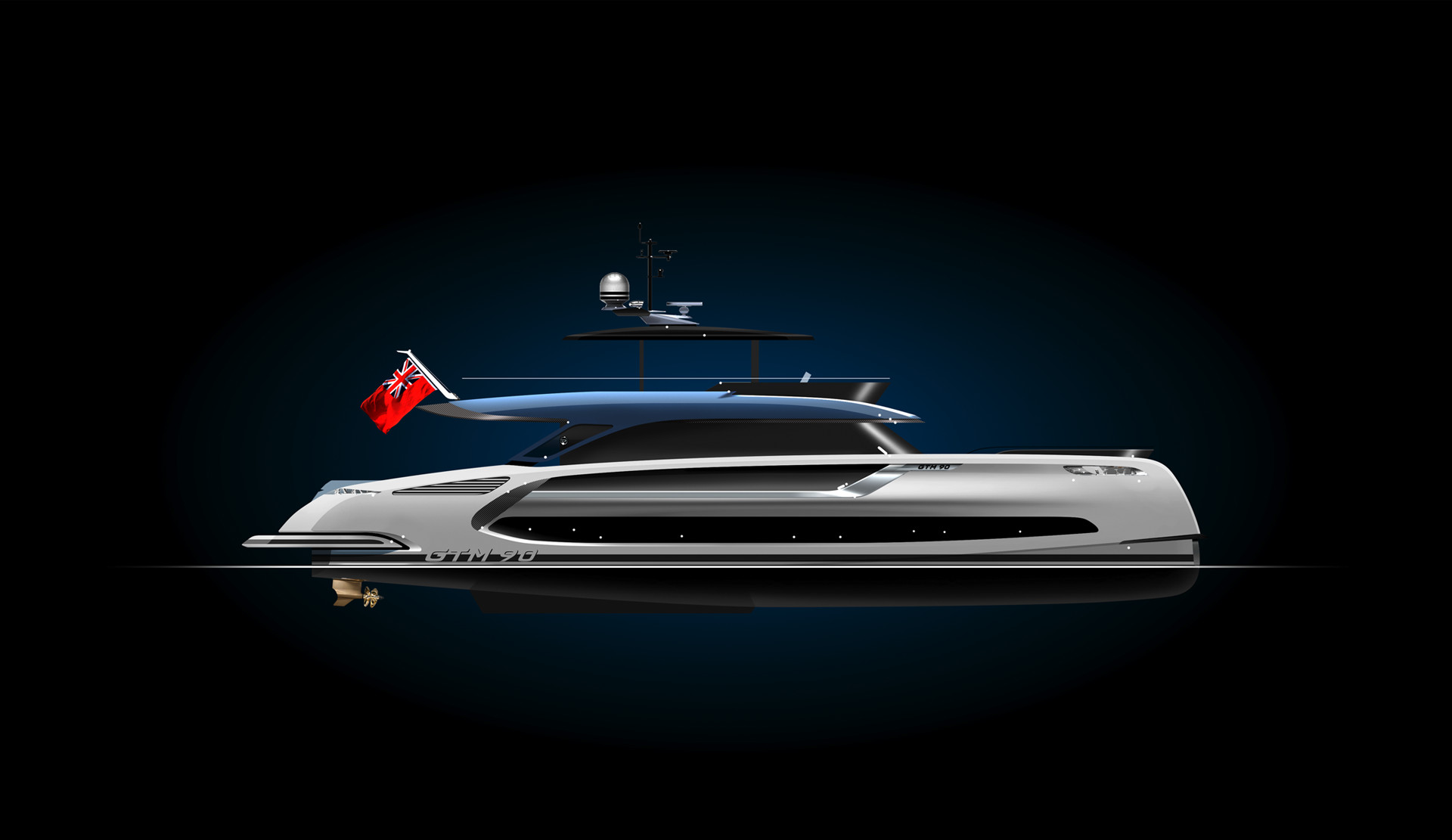

TRANSFORMING GTM 90. KLASSEN EDITION

The fast & sporty yacht GTM 90 was developed not only to entertain, but also protect guests whatever the weather. The main aft deck and sun deck provide ample space for lounging open air and the beach club, spa, dining area and open-style galley with bar can be transforto med with foldable bulwarks to allow a fresh sea breeze in. The striking exterior styling recalls the lines of modern supercars and a super-efficient hard chine hull delivers a top speed of 30+ knots with a range of 800nm at 17 knots.

The first edition of the GTM 90 is being developed in collaboration with leading VIP-car tuner Klassen with interior decor that mirrors the design of exclusive Klassen vans with different leathers, rich wood paneling and elegant LED courtesy lights. Klassen will also be responsible for all the exterior detailing, including leather supply, stitching and other special automotive design features

Paul Klassen, founder & CEO
“Dynamiq and Klassen share the same values related to high-end materials, engineering, finishing and maximum comfort on board for their demanding clientele. It's all about flawless perfection and first-class comfort on land and sea.”
Paul Klassen, founder & CEO

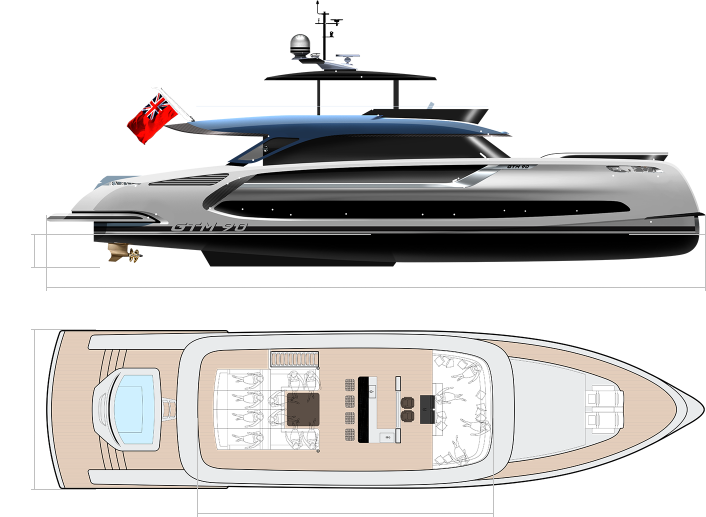

MAIN Dimensions

GTM 90
Length overall 27.5 m / 90’
Draft 1.75 m / 5'9”
Beam overall 6.7 m / 21’11”

Interior headroom (max)

Main deck
2.3 meters / 7’6’’
Lower deck
2.07 meters / 6’9’’

Specification

  • Hull type
    Hard chine
    Length overall
    27.5 m / 90’
    Beam overall
    6.7 m / 21’11”
    Draft
    1.75 m / 5'9”
    Tonnage
    150 GT
    Material
    Full aluminium, 5083
    Main engines
    3x Volvo Penta D13, 533 kW
    Propulsion
    3x IPS950 drives
    Generators
    2x 28 kW, Kohler
    Stabilisers
    2x Side Power curved fins
    Humphree interceptors + Seakeeper 26 (option)
  • Max speed
    31 knots
    Cruising speed (85% rpm)
    17 knots
    Range
    900 nm @ 15 knots
    730 nm @ 20 knots
    Fuel
    9,400 l / 2,480 US gallons
    Fresh water
    2,050 l / 541 US gallons
    Grey & black water
    1,250 l / 330 US gallons
    Guests
    8 in 4 cabins
    Crew
    4 in 2 cabins
  • Tender
    Williams 505 / Castoldi 16 (5,08 m / 16’ 8’’)
    Classification
    ISO Class A, MCA MGN 280
    Naval Architecture
    Van Oossanen NA
    Exterior Design
    Dobroserdov Design
    Interior Design
    Giuseppina Arena / Dynamiq
    Build time
    18 months
Starting at 7,500,000 €
Price excludes all options, taxes and charges
