GTT 160
GTT 160
ab 21,900,000 €
49.5 m
Länge
17/23 kn
Geschwindigkeit
4000 NM
Reichweite
6
Gästekabinen
A new class of cool

Die bahnbrechende 49 Meter Superyacht basiert auf einem schnellen Verdrängerrumpf, der von Van Oossanen in den Niederlanden konstruiert wurde. Lieferbar in nur 2 Jahren und mit einem eleganten, sportlichen Exterieur, verbindet sie eine starke Performance, Ästhetik und integrierte Ausstattungsmerkmale. Die Kombination aus Aluminium und Sealium Legierung bilden die Grundlage der Konstruktion für ein leichtes, robustes und pflegeleichtes Schiff. Gepaart mit einem Hull Vane fährt die Yacht ruhig, effizient und erreicht eine Höchstgeschwindigkeit von 17 Knoten sowie eine transatlantische Reichweite. An Bord befinden sich sechs luxuriöse Gästekabinen, zwei feste Balkone in der Eignerkabine, ein nahezu geräuschloser Antrieb, Touch-and-Go Hubschrauberlandeplatz, und optional das Bentley Home Interieur Design. Sie ist die perfekte Yacht für Reisen über die Sieben Weltmeere mit Stil.

key Features
Performance
  • Fast displacement hull form
    Fast displacement hull form
    Devised by the famous Dutch naval architects Van Oossanen, the GTT 160 unique hull features a round-bilge shape for remarkably low resistance and low fuel consumption while still being capable of high speeds. The design decreases vertical accelerations of the hull, which translates into a far more comfortable motion when sailing. The bow shape with a vertical stem maximises the waterline length, enhancing performance even more. To keep spray levels low, an integrated spray rail deflects water hitting the bow area. Built entirely from marine grade aluminium, the GTT 160 hull guarantees unparalleled comfort and safe operation for more than 25 years
  • Robust full aluminium construction
    Robust full aluminium construction
    Certified marine-grade 5083 aluminium and stronger 5383 Sealium, a lightweight alloy that weighs three times less than steel, is used for Dynamiq GTT 160 hull and superstructure. A lighter hull provides better performance, shallower draft, lower fuel consumption. Another benefit is that aluminium guarantees a stiff, robust and vibration-free vessel that is very comfortable and behaves well in a heavy swell or choppy seas. The strength-to-weight ratio of aluminium is equivalent to that of steel and there is much less risk of serious damage in case of a collision than with a fibreglass hull.
  • Hull Vane
    Hull Vane
    The Hull Vane® is a patented fixed foil located under the stern of the yacht. Developed by renowned Dutch naval architects Van Oossanen it influences the stern wave pattern and creates hydrodynamic lift, which is partially oriented forward. This innovation leads to significant reduction of the hull's resistance, which in turn enables the installation of smaller engines, fuel savings and longer range. The Hull Vane® also improves stability under way and at anchor, while reducing both pitching and yawing motions.
  • Curved Stabilizer Fins
    Curved Stabilizer Fins
    Vector Fins stabilizers dramatically reduce roll as well as undesired yaw and sway motions caused by active fins. Their vertical concave shape creates a net force direction, both in cruising and at-anchor modes, so the work is more up-down instead of side-to-side. By changing the net force angle, this also increases the leverage arm around the boat’s rolling point, further increasing the physical forces that work on the boat to reduce roll. This provides more efficient stabilization per fin size, which means that drag and power consumption are less than with other fins offering comparable roll reduction.
  • Transatlantic range
    Transatlantic range
    The GTT 160 has an ocean-going range of 4,000 miles at 10 knots and is perfectly equipped for long-range cruises, which means owners have the opportunity to enjoy two seasons during the year (Med and Caribbean) and greater freedom navigating remote locations with no bunkering infrastructure. GTT 160 is equipped with high-capacity Miele marine fridges and freezers, cold garbage stores, separate laundry facilities and plenty of storage space. Generous fresh-water tanks and powerful water-makers allow guests to spend long periods of time sea in complete comfort.
  • Touch & Go helipad
    Touch & Go helipad
    Helicopters are a convenient, time-saving and safe means of transportation. They are also a stylish way to welcome guests in style or explore uncharted locations. The GTT 160 offers a touch-and-go helipad platform with a maximum take-off weight 3,000 kg Eurocopter EC130 T2, AW 119, Bell 407 GXP).
  • Engine room cooling
    Engine room cooling
    The engine room cooling offers two main benefits: on the one hand it cools down the ER quicker on arrival in port or anchorage without having the blowers running full power for an hour; and on the other hand, it keeps the ER at a comfortable and steady temperature while at anchor to preserve electrical equipment. Overall, the benefit is reduced noise as there is no need to have the blowers running when the yacht is static, and the temperature cooling in the engine room makes it a more comfortable environment to work in. A long-term benefit is that it extends the longevity of all the equipment and especially the electronic parts.
Fast displacement
hull form
Robust full aluminium
construction
Hull Vane
Curved
Stabilizer Fins
Transatlantic
range
Touch & Go
helipad
Engine room
cooling
Comfort
  • Main saloon fireplace
    Main saloon fireplace
    A real fireplace becomes a centrepiece and adds a cosy touch, especially when cruising early or later in the season when the evenings can be a bit chilly. They are completely safe and fully certified and rely on low-heat producing fuels such as ethanol.
  • High-end audio by Bowers & Wilkins
    High-end audio by Bowers & Wilkins
    Dynamiq has partnered with iconic British sound maker Bowers & Wilkins to deliver pristine sound to its discerning customers. All luxury spaces and each guest cabin will be carefully analysed and studied by experts to ensure the ideal positioning of the speaker systems to have the best possible sound expertise on board.
  • Owner’s stateroom with two fixed balconies
    Owner’s stateroom with two fixed balconies
    A standout feature aboard the GTT 160 are the two fixed balconies in the owner’s stateroom, which do not require any servicing or crew member to operate. Nor does the floor become an unsightly wall as with fold-down balconies. A fixed balcony means you can wake up and enjoy your morning coffee, sunbath in full privacy or read a newspaper close to the sea without delay.
  • Beach club with hammam or sauna
    Beach club with hammam or sauna
    For maximum relaxation the Dynamiq GTT 160 offers a beach club with hamman or sauna, as well as space for gym equipment. Beach clubs come into their own when anchored in a quiet bay when they become an extension of the stern platform, so guests can take a steam bath or sauna straight after a refreshing plunge. .
  • XIR glass
    XIR glass
    The GTT 160 features next-generation laminated XIR glass that allows maximum light transmission, while keeping solar heat gain at bay. Harmful UV rays are almost completely blocked, and heat transmission reduced by 60%. The result is an interior that offers the wide panoramas of large windows without the penalty of heat build-up. This means significantly reduced air-conditioning loads and therefore lower running costs. The glass manufacturer is Isoclima, an Italian high-tech company that also supplies glass for luxury automobiles such as Bentley, McLaren, Mercedes and BMW.
Main saloon
fireplace
High-end audio
by Bowers & Wilkins
Owner’s stateroom
with two fixed balconies
Beach club
with hammam or sauna
XIR glass

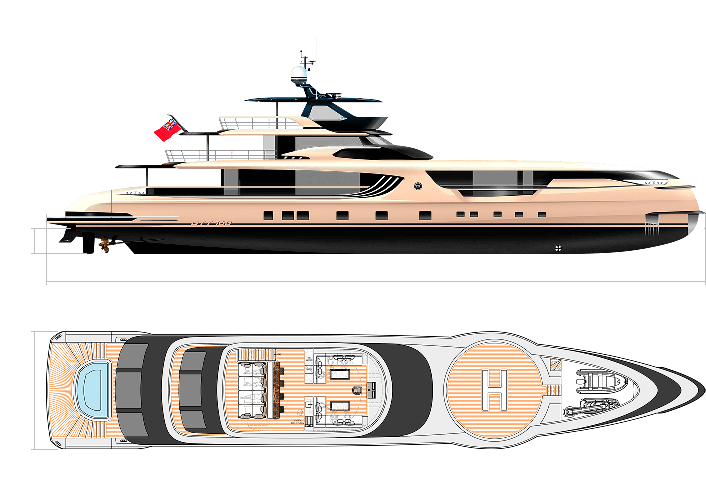

HAUPTABMESSUNGEN

GTT 160
Länge über alles 49,5 m / 160’
Tiefgang 2 m / 6'6”
Schiffsbeite über alles 8.7 m / 28’6”

Raumhöhe Innennbereiche (max)

Sonnendeck
2.1 Meter / 6’11’’
Upper deck
2.1 Meter / 6’11’’
Hauptdeck
2.2 Meter / 7’3’’
Unterdeck
2.1 Meter / 6’11’’

SPEZIFIKATION

  • Länge
    49.5 m / 160’
    Schiffsbreite
    8.7 m / 28’6”
    Tiefgang
    2 m / 6'6”
    Material
    Full aluminium, 5083
    Rumpf-Typ
    Runde Bilge, Schnellverdränger
    Verdrängung
    399 GT
    Höchstgeschwindigkeit
    17 kn
    Hauptmotoren
    2x MAN i6-730, 537 kW
    Höchstgeschwindigkeit GTT 160S (option)
    23 kn
    Hauptmotoren
    2x MAN V12-1800, 1324 kW
  • Reichweite
    2,700 sm (Transat) @ 14 kn
    4,000 sm @ 10 kn
    Antrieb
    2x 1,400 mm 5 blades props
    Generatoren
    2x 100 kW, Kohler
    Stabilisatoren
    2x Side Power, zero speed
    Treibstoffvorrat
    38,300 l / 10,117 US Gallonen
    Frischwasservorrat
    14,800 l / 3,910 US Gallonen
    Gäste
    12 in 6 Kabinen
    Crew
    8 in 4 Kabinen
  • Helipad
    Touch & Go, maximum take-off
    weight 3,000 kg (Eurocopter EC130 T2,
    AW 119, Bell 407 GXP)
    Tender
    Williams 625, Castoldi 21’
    Klassifizierung
    RINA commercial, LY4 compliant
    Notationen
    RINA Comfort Class, RINA Green Star
    Schiffbauingenieur
    Van Oossanen NA
    Außendesign
    Dobroserdov Design
    Innendesign
    Claudio Pironi & Partners
    Bauzeit
    28 Monate
ab 21,900,000 €
Preis exklusive aller Zusatzoptionen, Steuern und Gebühren

DECK PLÄNE

  • 5 cabins
  • 6 cabins
Request brochure Configure your GTT 160
contact us for more info
